INVICTA 60

Supreme Authority in Low Frequency

Ultra low distortion, high output infrasonic subwoofer

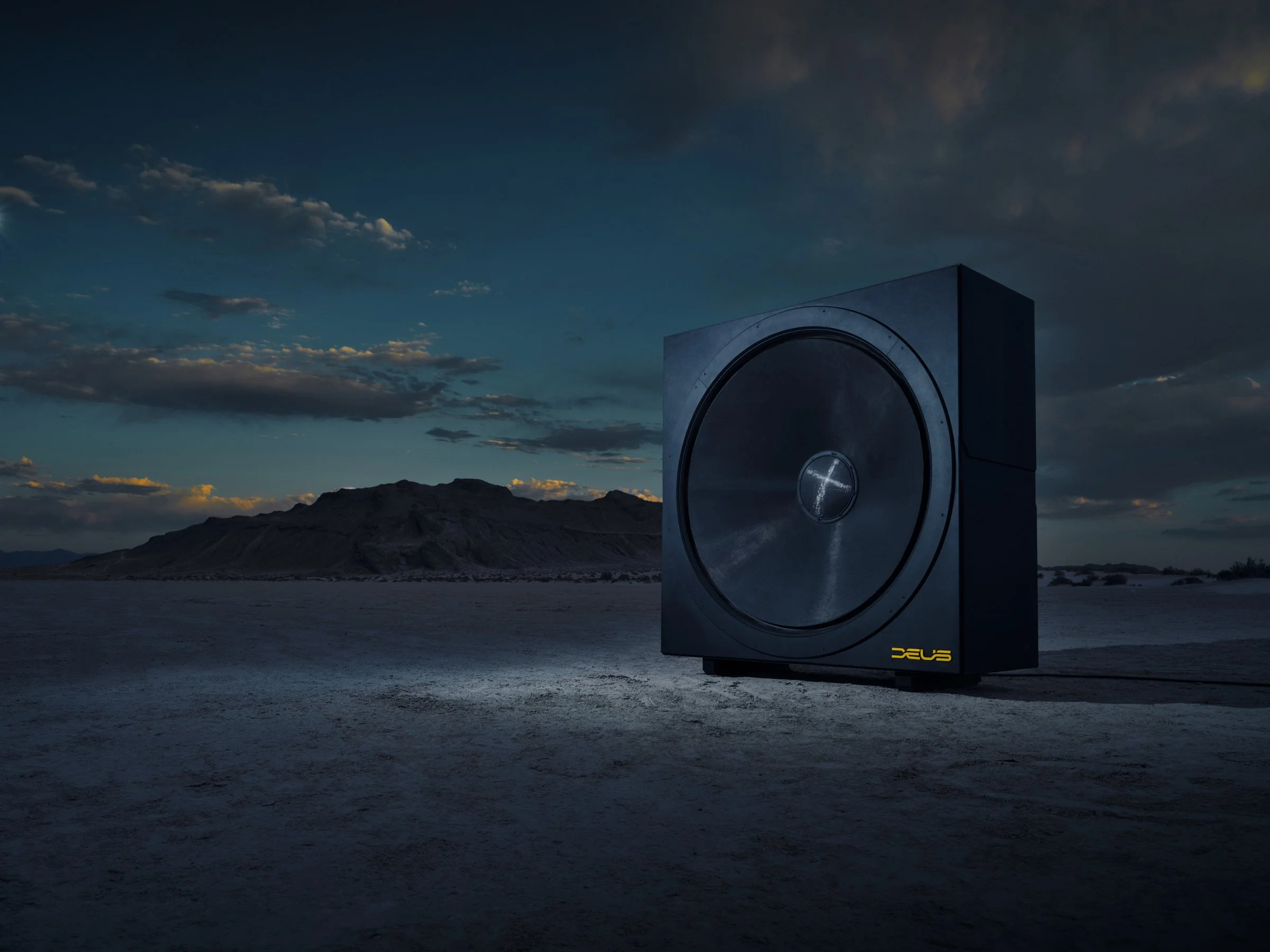

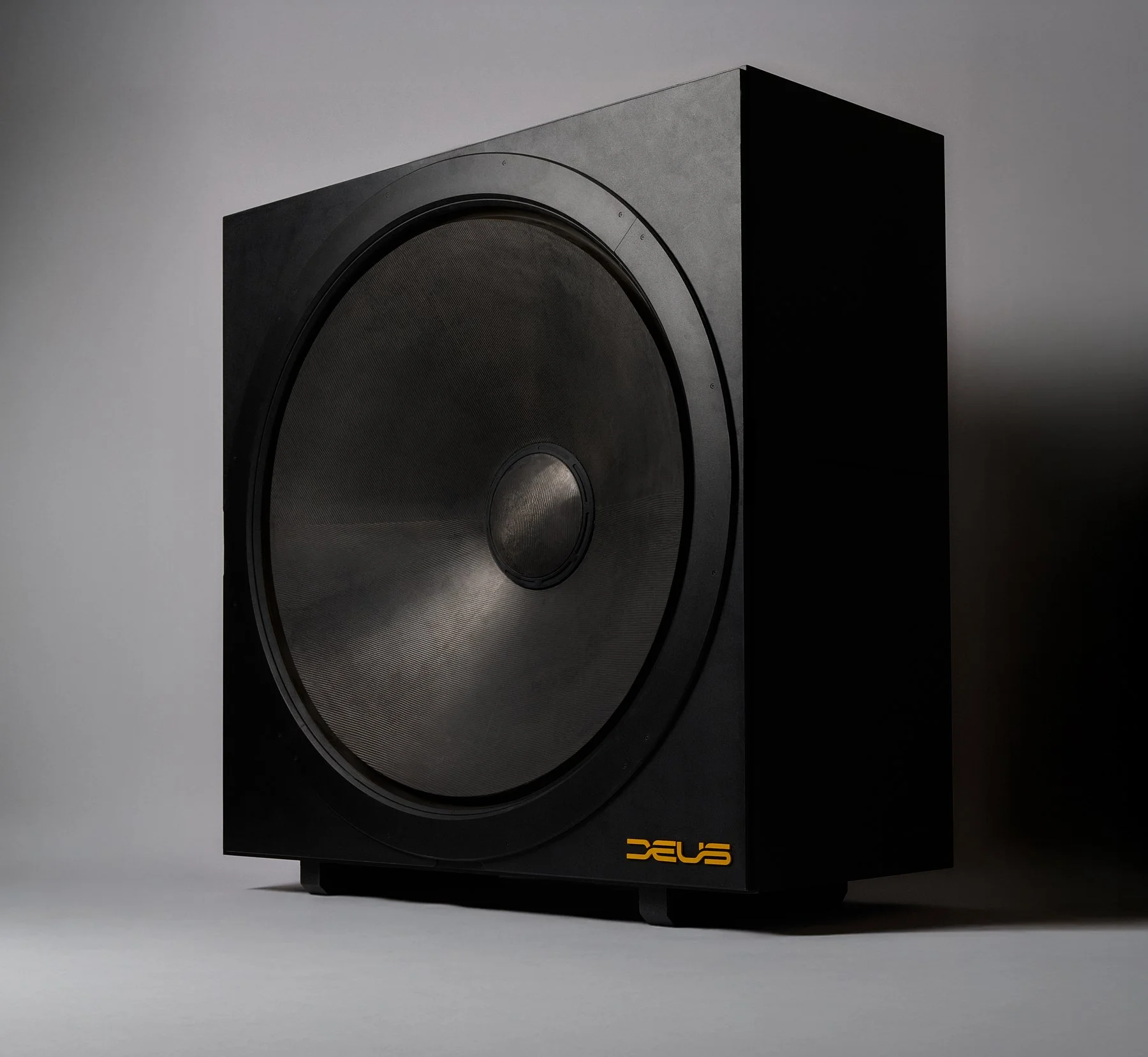

The INVICTA 60 is not an evolution of subwoofer design — it is a complete rethinking of what’s possible in infrasonic reproduction. Featuring a 60-inch custom driver powered by Deus Audio’s proprietary MASS Drive™ motor system, Invicta 60 unleashes unprecedented infrasonic power with surgical accuracy, producing bass that is not only heard but physically experienced.

Developed over years of focused R&D, the Invicta 60 incorporates the MASS Drive™ motor, advanced suspension technologies, real-time thermal monitoring, and a fully modular architecture. Every element was designed, machined, and assembled in-house to ensure absolute control over performance and quality. The result is the largest, cleanest, and most accurate infrasonic subwoofer ever built — a reference for cinemas, research facilities, and anyone who demands the impossible.

Application

Ultra high end cinema, production studio, premier dance club, screening room, ride / attraction special effects, high accuracy live sound.

Details

  • Proprietary MASS Drive™ motor system for unmatched linearity and control

  • Dual voice coil design for extreme power handling and SPL capability

  • Fully customizable enclosure (2,500 – 4,000 liters), optionally weather-sealed for outdoor use

  • Precision-built driver and enclosure, 100% designed, machined, and assembled in-house

  • Fully Klippel validated for verified linearity and accuracy

  • 8-conductor Neutrik SpeakOn connection plus XLR for real-time thermal monitoring

  • Serviceable motor design for long-term reliability

  • 20kW Class D amplifier with 2U rackmount DSP (real-time limiters, thermal & power monitoring, user-adjustable DSP)

Specifications

Performance

Specification Details Notes
Power Handling 20,000W Peak / 10,000W Continuous
Impedance (per coil) DCR: 1.80 ohm
Coil Configuration Dual Voice Coil
Sensitivity 105.0 dB 2.83v/1m, 2π anechoic
Max SPL (Peak) 146.0 dB 1m, 2π, anechoic
Max SPL (Continuous) 143.0 dB 1m, 2π, anechoic
Frequency Response (-3dB) 20.0Hz – 230Hz No DSP
Frequency Response (-3dB) 12.0Hz – 230Hz With Linkwitz Transform
Low Frequency Extension (-3dB) 12.00Hz With Linkwitz Transform
Low Frequency Extension (-6dB) 9.26Hz With Linkwitz Transform
Low Frequency Extension (-10dB) 7.95Hz With Linkwitz Transform
Cone Breakup Frequency 265Hz
Xmax 33mm / 1.30in One way, 82% BL
Group Delay at f3 19.2ms With Linkwitz Transform
System Qtc 0.55 With Linkwitz Transform
Enclosure Alignment Sealed
Low Frequency Rolloff 12dB/oct

CTA 2010 data (preliminary)

Frequency Amp Voltage (RMS) 1m Peak 2m Peak 2m RMS 4m Peak THD
12.5Hz140v129.5 dB123.5 dB120.5 dB117.5 dB11.80%
16Hz140v135.5 dB129.5 dB126.5 dB123.5 dB7.39%
20Hz140v141.8 dB135.8 dB132.8 dB129.8 dB5.72%
25Hz140v144.5 dB138.5 dB135.5 dB132.5 dB7.85%
31.5Hz140v144.1 dB138.1 dB135.1 dB132.1 dB6.33%
40Hz140v143.1 dB137.1 dB134.1 dB131.1 dB5.19%
50Hz140v143.1 dB137.1 dB134.1 dB131.1 dB3.04%
63Hz140v144.4 dB138.4 dB135.4 dB132.4 dB3.07%
80Hz140v146.0 dB140.0 dB137.0 dB134.0 dB2.18%

Design

I/ONeutrik SpeakOn NL8 for audio, RJ45 for thermal and excursion data
Cables (included)50' 8-conductor 12ga with dual Neutrik SpeakOn NL8 connectors (custom lengths available), 50' Ethernet
Customization OptionsCustom enclosure size (larger will provide higher infrasonic bass output, quoted on a per design basis), custom cable lengths, outdoor version with PVC enclosure panels, and thermal management
Integrated Proprietary TechnologiesDirect voice coil temperature measurement, PowerSoft DPC excursion monitoring, overhung linear BL motor
PatentsPending
MountingSits on ground
Warranty3 years standard / 5 years with registration
Dimensions (Metric)749 mm × 1788 mm × 1788 mm
Dimensions (Imperial)29.49 in × 70.39 in × 70.39 in
Shipping Dimensions (Crated, Metric)900 mm × 1900 mm × 1900 mm
Shipping Dimensions (Crated, Imperial)35.43 in × 74.80 in × 74.80 in
Weight (Net, Assembled)401 kg / 885 lbs
Weight (Gross, Shipping)481 kg / 1060 lbs
