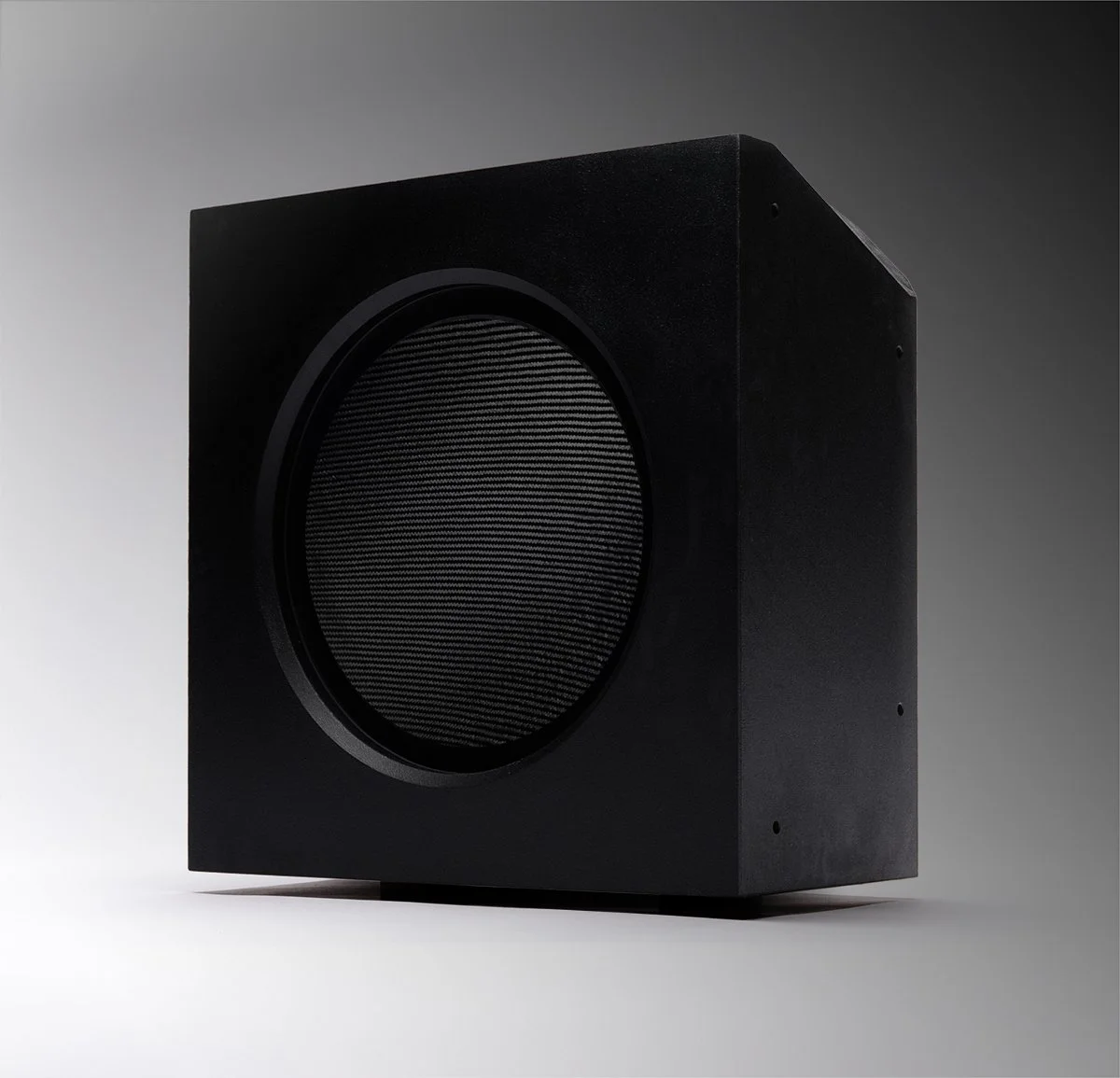

VERA 18

Hi-Fidelity for the Cinema

Ultra low distortion, high output subwoofer

The VERA 18 brings the standards of high-end Hi-Fi into the world of cinema, delivering low frequencies with a level of accuracy and musicality rarely found in theater sound. Purpose-built for high-end cinema installations, VERA 18 reproduces bass not as an effect, but as an essential layer of truth in the soundtrack.

At its core is Deus Audio’s proprietary MASS Drive™ motor system, a precision-engineered topology that maintains linearity and control even under extreme demands. This innovation ensures that every impact, note, and wave of low-frequency energy is reproduced with accuracy, not exaggeration.

Every component has been engineered to eliminate distortion and preserve detail, so even at reference levels, the bass remains controlled, articulate, and deeply engaging. Designed for behind-the-screen integration, scalable in arrays, and robust enough for studio and club environments, the VERA 18 sets a new standard for high-end cinematic low-frequency performance.

Application

High end cinema, production studio, premier dance club, screening room

Recommended Configuration

Two or more per space (ideally 4-16 depending on target max SPL and headroom), distributed to counteract room modes, behind the screen, stacked, etc...

Details

  • Hi-Fi grade performance, optimized for the cinema environment

  • Proprietary MASS Drive™ overhung linear BL motor system for unmatched linearity, Ultra-low distortion, control, and accuracy

  • Shallow depth (<12”) enclosure for behind-the-screen placement

  • Fully Klippel-validated for verified precision

  • 4-conductor Neutrik SpeakOn connection + XLR thermal data cable

  • Amplifier: 2.5kW Hypex Ncore Class D with integrated DSP (real-time limiters, coil monitoring, adjustable LPF, gain, and 0°/180° phase)

  • Optional AES67 / Dante network input

  • 120V, 20A dedicated circuit required

Specifications

Performance

Specification Details Notes
Impedance (per coil)3.40 ohmDCR
Coil ConfigurationSingle voice coil
Sensitivity95.5 dB2.83v/1m, 2π anechoic
Max SPL (Peak)136.9 dB1m, 2π, anechoic
Max SPL (Continuous)133.9 dB1m, 2π, anechoic
Frequency Response (-3dB)30.0Hz – 230HzNo DSP
Frequency Response (-3dB)24.0Hz – 230HzWith Linkwitz Transform
Low Frequency Extension (-3dB)24.00HzWith Linkwitz Transform
Low Frequency Extension (-6dB)18.00HzWith Linkwitz Transform
Low Frequency Extension (-10dB)10.00HzWith Linkwitz Transform
Cone Breakup Frequency409Hz
Xmax29 mm / 1.14 inOne way, 82% BL
Group Delay at f312.5 msWith Linkwitz Transform
System Qtc0.6With Linkwitz Transform
Enclosure AlignmentSealed
Low Frequency Rolloff12dB/oct

CTA 2010 data (preliminary)

Frequency Amp Voltage (RMS) 1m Peak 2m Peak 2m RMS THD
20Hz140v123.8 dB117.8 dB114.8 dB19.50%
25Hz140v128.0 dB122.0 dB119.0 dB9.20%
31.5Hz140v131.4 dB125.4 dB122.4 dB7.84%
40Hz140v134.6 dB128.6 dB125.6 dB8.23%
50Hz140v136.5 dB130.5 dB127.5 dB6.14%
63Hz140v136.8 dB130.8 dB127.8 dB4.69%
80Hz140v136.9 dB130.9 dB127.9 dB2.70%
100Hz140v136.6 dB130.6 dB127.6 dB2.11%
125Hz140v135.8 dB129.8 dB126.8 dB1.83%
160Hz140v133.4 dB127.4 dB124.4 dB0.72%
200Hz140v128.6 dB122.6 dB119.6 dB0.57%

Design

I/ONeutrik SpeakOn NL4 for audio, XLR for thermal data
Cables (Included)50' 4-conductor 12ga with dual Neutrik SpeakOn NL4 connectors (custom lengths available), 50' XLR for thermal data
Customization OptionsCustom cable lengths, custom brackets for stacking, coupling to structure, etc...
Integrated Proprietary TechnologiesDirect voice coil temperature measurement, overhung linear BL motor, CLD enclosure, coupled front and rear enclosure panels with special motor mount
PatentsPending
MountingSits on ground, integrated mounting points for custom brackets to connect speakers together in stacks or arrays, or to couple them to the structure
Warranty (Default / With Registration)3 years / 5 years
Dimensions (Metric)585 mm × 585 mm × 294 mm
Dimensions (Imperial)23.0 in × 23.0 in × 11.57 in
Shipping Dimensions (Crated, Imperial)TBD
Weight (Net, Assembled)87 lbs / 39.5 kg
Weight (Gross, Shipping)TBD
