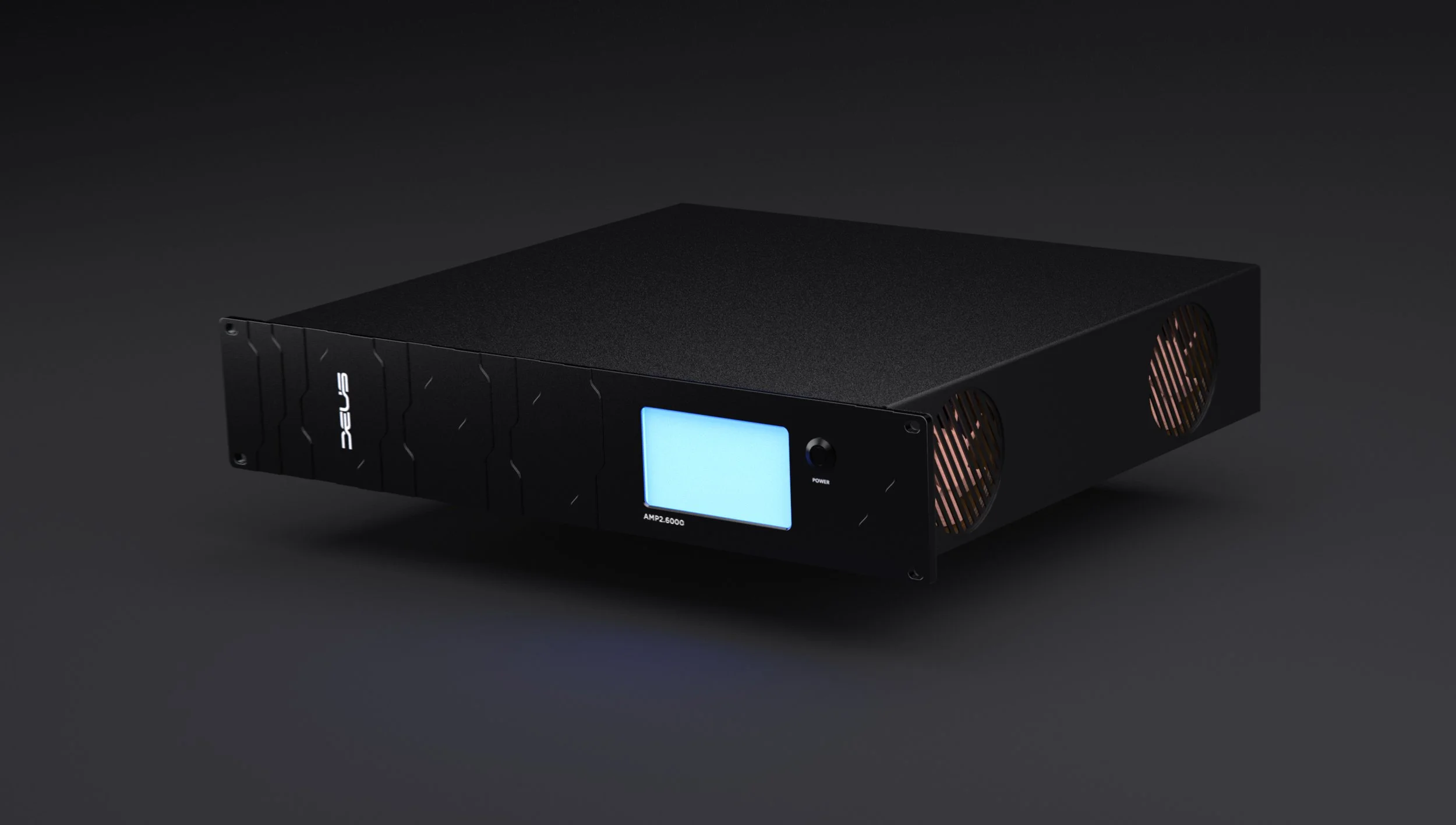

AMP2.6000
Two-Channel Infrasonic Amplifier
Two-Channel Infrasonic Amplifier
The AMP2.6000 is the companion amplifier for Invicta 60 MK2 and Invicta 40 — a two-channel DSP amplifier delivering ultra-high current for true infrasonic output, with one amplifier per subwoofer and one channel per voice coil. Like the AMP2.2500, it’s built around amplifier modules selected for sustained high-current output under continuous load rather than short-burst peak power, matched to custom driver voice coils optimized to pull peak power from the amp while maintaining ultra-low distortion and noise.
Key features
Two channels, driving one subwoofer per amplifier (one channel per voice coil, for Invicta 60 MK2 or Invicta 40’s dual voice coil driver).
Front-panel touchscreen — real-time TrueTemp temperature, per channel, at a glance. Simple setup, control, and device status at your fingertips.
TrueTemp direct voice coil temperature measurement — real, physically measured coil temperature, not an estimate.
Proprietary DSP built around Analog Devices DSP chips, tuned over Wi-Fi — direct connection or on the local network.
Preloaded with the full Deus subwoofer catalog — correction filters and limiters for every companion sub, ready out of the box. Layer custom DSP on top for room-mode correction or system integration.
DSP program backup, export, and restore across amplifiers — for consistent, repeatable tuning across a multi-amp deployment.
Robust limiters — All limiters use a side-chain monitoring system to avoid clipping and overshoot, and include monitoring for excursion, voltage, voice coil temperature, and rate of thermal change
Machined aluminum faceplate with a repeating pattern, designed as a statement piece.
Specifications
Performance
| Specification | Details | Notes |
|---|---|---|
| Channels | 2 | |
| Amplifier Modules | High-current modules selected for sustained infrasonic output under continuous load | |
| Peak Power Output | 6,000 W/ch into 2 ohm | |
| Continuous / RMS Power Output | TBD | Pending measurement |
| THD+N at Rated Power | TBD | Pending measurement |
| Frequency Response | TBD | Pending measurement |
| Signal-to-Noise Ratio | TBD | Pending measurement |
| Gain (High / Low) | TBD | Pending measurement |
Design
| Inputs | Balanced XLR per channel, plus unfiltered XLR passthrough per channel |
|---|---|
| Outputs | Neutrik SpeakOn NL4 + high-current Phoenix connector, per channel, for easy, versatile wire routing to the speaker |
| Control | 12V trigger in/out; Wi-Fi (direct or networked) for DSP tuning |
| Display | Front-panel touchscreen — real-time TrueTemp temperature and rate-of-change readout, per subwoofer |
| DSP Platform | Analog Devices DSP |
| AC Input | 100–240V, 50/60 Hz (110V/220V compatible; best performance at 220V) |
| Chassis | 2U rack mount, machined aluminum faceplate, crossflow cooling |
| Front / Rear Controls | Standby button (front); high / low gain selection, and power switch (rear) |
| Warranty | Confirm — match sub warranty terms (3 yr / 5 yr) or state separately |
| Dimensions (Metric) | TBD — pending measurement |
| Dimensions (Imperial) | TBD — pending measurement |
| Weight | TBD — pending measurement |
