INVICTA 40

Serious Infrasonic Output in a Compact Footprint

Ultra low distortion, high output infrasonic subwoofer

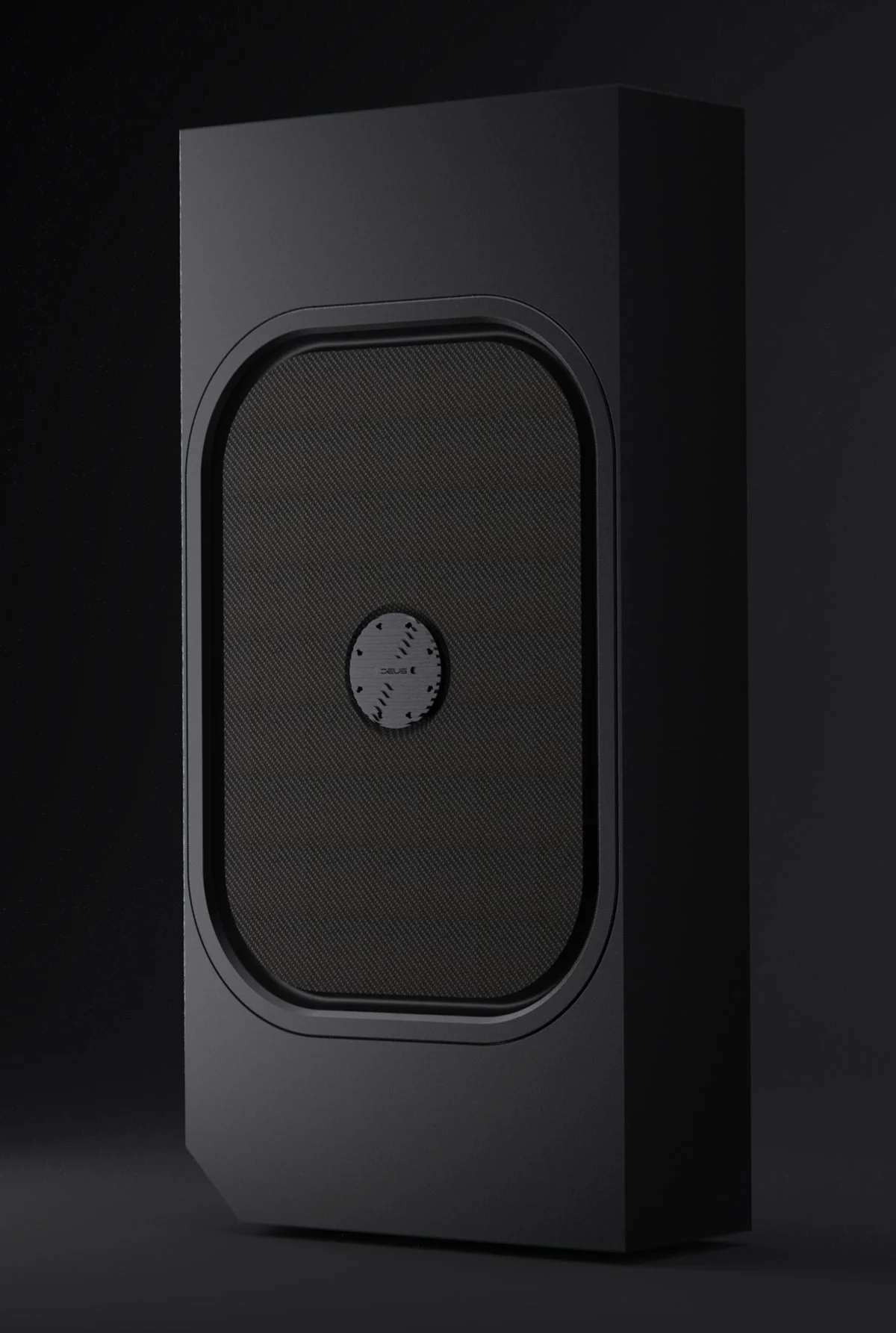

The Invicta 40 brings Invicta-class infrasonic performance — the same ultra-linear MASS Drive™ motor found in the flagship Invicta 60 MK2 — into a dramatically smaller footprint: half the output of the Invicta 60 in about one-quarter of the floor space. A pair of Invicta 40s matches the output of a single Invicta 60 while enabling placement in two locations, improving low-frequency distribution through the room.

Application

Ultra-high-end cinema, production studios, statement 2 channel hifi systems, screening rooms, ride and attraction special effects, and high-accuracy live sound.

Recommended configuration

One or more per space depending on SPL targets — behind the screen, on stage, integrated into a baffle wall, or against the rear wall behind seating. At just 14.5 in deep, the Invicta 40 is built around the dimension theaters have the least of: depth.

Engineered as a complete system

The Invicta 40 is optimized for the rack-mounted AMP2.6000, a two-channel DSP amplifier delivering 6,000 W per channel — one amp per sub, one channel per voice coil. TrueTemp thermal monitoring provides real-time closed-loop thermal feedback to the amplifier as part of the robust limiter system. All limiters use a side-chain monitoring system to avoid clipping and overshoot, and include monitoring for excursion, voltage, voice coil temperature, and rate of thermal change, letting the system run at its true limits instead of relying on conservative, estimate-based protection. See the AMP2.6000 page for full details.


Details

  • Same MASS Drive™ motor as the Invicta 60 MK2 — same coil, same magnetic circuit, slightly reduced mechanical over-travel to fit the Invicta 40’s 14.5 in enclosure depth.

  • Hand laid-up, one-piece flat carbon fiber cone over a proprietary CNC machined foam core.

  • No-basket, ultra-rigid woofer/enclosure architecture, same construction as the Invicta 60 MK2.

  • Field-recone compatible — a single technician can complete a full recone in under 30 minutes with basic hand tools

  • TrueTemp direct voice coil temperature measurement — real, physically measured coil temperature, not an estimate.

  • Sealed alignment, 12 dB/octave acoustic rolloff — works naturally with in-room gain for deep-bass extension.

Coming Soon

Specifications

Performance

Specification Details Notes
Power Handling20,000 W peak / 10,000 W continuous
Impedance (per coil)1.80 ohmDCR
Coil ConfigurationDual voice coil
Sensitivity94.0 dB2.83v/1m, 2π anechoic
Max SPL (Peak)141.9 dB1m, 2π, anechoic, CTA-2010-B
Max SPL (Continuous)138.9 dB1m, 2π, anechoic, CTA-2010-B
Frequency Response (-3dB)24.9Hz – 123HzNo DSP
Frequency Response (-3dB)19.9Hz – 105HzWith Linkwitz Transform
Low Frequency Extension (-3dB)19.90HzWith Linkwitz Transform
Low Frequency Extension (-6dB)15.80HzWith Linkwitz Transform
Low Frequency Extension (-10dB)12.30HzWith Linkwitz Transform
Cone Breakup Frequency147Hz
Xmax30 mm / 1.18 inOne way, 82% BL
Group Delay at f315.3 msWith Linkwitz Transform
System Qtc0.6With Linkwitz Transform
Enclosure AlignmentSealed
Low Frequency Rolloff12dB/oct

CTA 2010 data (preliminary)

Frequency Amp Voltage (RMS) 1m Peak 2m Peak 2m RMS 4m Peak
12.5 Hz90V116.4 dB110.4 dB107.4 dB104.4 dB
16 Hz129V124.3 dB118.3 dB115.3 dB112.3 dB
20 Hz129V131.4 dB125.4 dB122.4 dB119.4 dB
25 Hz129V136.0 dB130.0 dB127.0 dB124.0 dB
31.5 Hz129V138.8 dB132.8 dB129.8 dB126.8 dB
40 Hz129V138.1 dB132.1 dB129.1 dB126.1 dB
50 Hz129V136.9 dB130.9 dB127.9 dB124.9 dB
63 Hz129V138.2 dB132.2 dB129.2 dB126.2 dB
80 Hz129V141.9 dB135.9 dB132.9 dB129.9 dB
100 Hz68V141.5 dB135.5 dB132.5 dB129.5 dB
125 Hz129V135.6 dB129.6 dB126.6 dB123.6 dB
160 Hz65V115.3 dB109.3 dB106.3 dB103.3 dB
200 Hz129V127.7 dB121.7 dB118.7 dB115.7 dB

Design

Measured ground-plane at 4m, sub on its side. Powered by a pre-production AMP2.6000; amp voltage was the system limit across most of the band.

I/ODual Neutrik SpeakOn NL4 (one per voice coil), XLR for TrueTemp thermal monitoring
Cables (Included)Dual 50' 4-conductor 12ga with Neutrik SpeakOn NL4, 50' XLR for TrueTemp
Optional AccessoriesFloor/wall coupling brackets, grille
Integrated Proprietary TechnologiesMASS Drive™ ultra-linear motor, field-recone compatible driver, hand laid-up one-piece flat carbon fiber cone, TrueTemp direct voice coil temperature measurement, ultra-rigid no-basket woofer/enclosure system
PatentsPending
MountingSits on the ground on vibration-isolation feet, vertical or horizontal orientation; optional wall/floor brackets for added stability
Warranty (Default / With Registration)3 years / 5 years
Dimensions (Metric)368 mm × 915 mm × 1875 mm (D × W × H)
Dimensions (Imperial)14.50 in × 36.03 in × 73.82 in (D × W × H)
Shipping Dimensions (Crated, Metric)TBD
Shipping Dimensions (Crated, Imperial)TBD
Weight (Net, Assembled)TBD
Weight (Gross, Shipping)TBD
